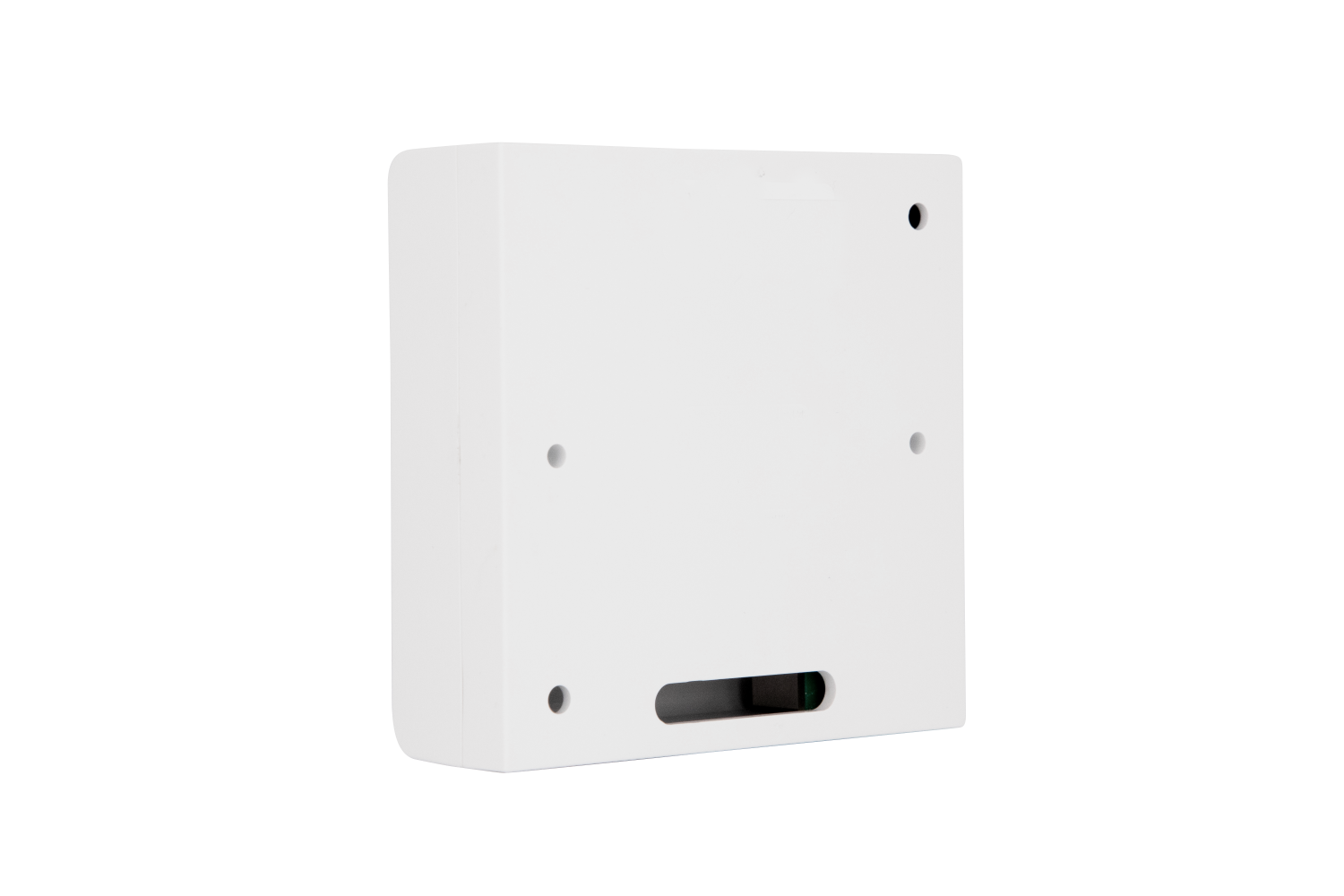

U-PROX IC E
NOK 3,100.00
Price excl. VAT.
2-year manufacturer’s warranty.
Sold to business customers only.
Intelligent IP-based lift controller.
U-PROX IC E is an IP-based lift controller designed to control access to floors using U-PROX RM relay modules. It integrates directly into the U-PROX IP access control system and gives precise control over which floors a user has access to, based on their rights. One controller supports up to eight U-PROX RM modules, giving a total of 64 controlled floors.
Key features
- IP-based lift controller for the U-PROX IP system
- Supports up to 8 U-PROX RM modules (64 relays in total)
- Gives floor access in accordance with the user’s access rights
- Ready for the next user immediately after a floor has been selected
- Sends floor selection to the access control system in real time
- Remote-controlled floor access possible via the ACS operator
- Supports "over-floor" / multi-floor access logic
System integration and security
- The reader is mounted inside the lift car
- Supports the U-PROX WRS485 module for connecting Wiegand readers
- Supports up to 32,000 users/cards
- Disables lift control in emergency situations, including:
- Failure of the U-PROX IC E main module
- Power failure or a fault in a U-PROX RM relay module
- Activation of the emergency input on the relay module
- Manual override from the access control system
Technical specifications
- Network interface: Ethernet 100 Mbit (4-wire)
- Supported modules: up to 8 × U-PROX RM
- Total number of relays: up to 64
- Power supply: external 12 VDC
- Card capacity: 32,000 users
📎 Documentation
