U-PROX IP400 OSDP

Key features

• Up to 2 single-sided doors, 1 door with a reader on both sides or 1 turnstile
• 2 readers via OSDP v2.2 (RS-485) and 2 readers via Wiegand (Auto, 26–80 bit)
• 8 inputs with end-of-line resistors (2 kΩ)
• 4 relays (NO, NC, COM), 5 A @ 24 V
• Ethernet 100 Mbit and Wi-Fi 2.4 GHz, encrypted two-way communication (256-bit key)
• Initial set-up from the U-PROX Config mobile app
• Up to 32,000 identifiers and 47,000 events
• 10,000 temporary identifiers
• Anti-passback: local, or global with U-PROX IC A

Technical specifications

• Doors: up to 2 single-sided, 1 door with a reader on both sides or 1 turnstile
• Readers: 2 × OSDP 2.2 (RS-485, 115,200, ID 0 and 1); 2 × Wiegand (Auto, 26–80 bit)
• Inputs: 8, with end-of-line resistors (2 kΩ)
• Relays: 4 (NO, NC, COM), 5 A @ 24 V
• Communication: Ethernet 100 Mbit; Wi-Fi 2.4 GHz (802.11 b/g/n)
• Set-up: U-PROX Config mobile app
• Identifiers: 32,000
• Temporary identifiers: 10,000
• Event log: 47,000
• Weekly schedules: 250 · Time zones: 250 · Holidays: 250
• Clock: real-time clock, daylight saving time, time zone
• Power supply: +10.8…15 VDC, consumption < 250 mA
• Temperature range: –10°C to +55°C, 80 % relative humidity

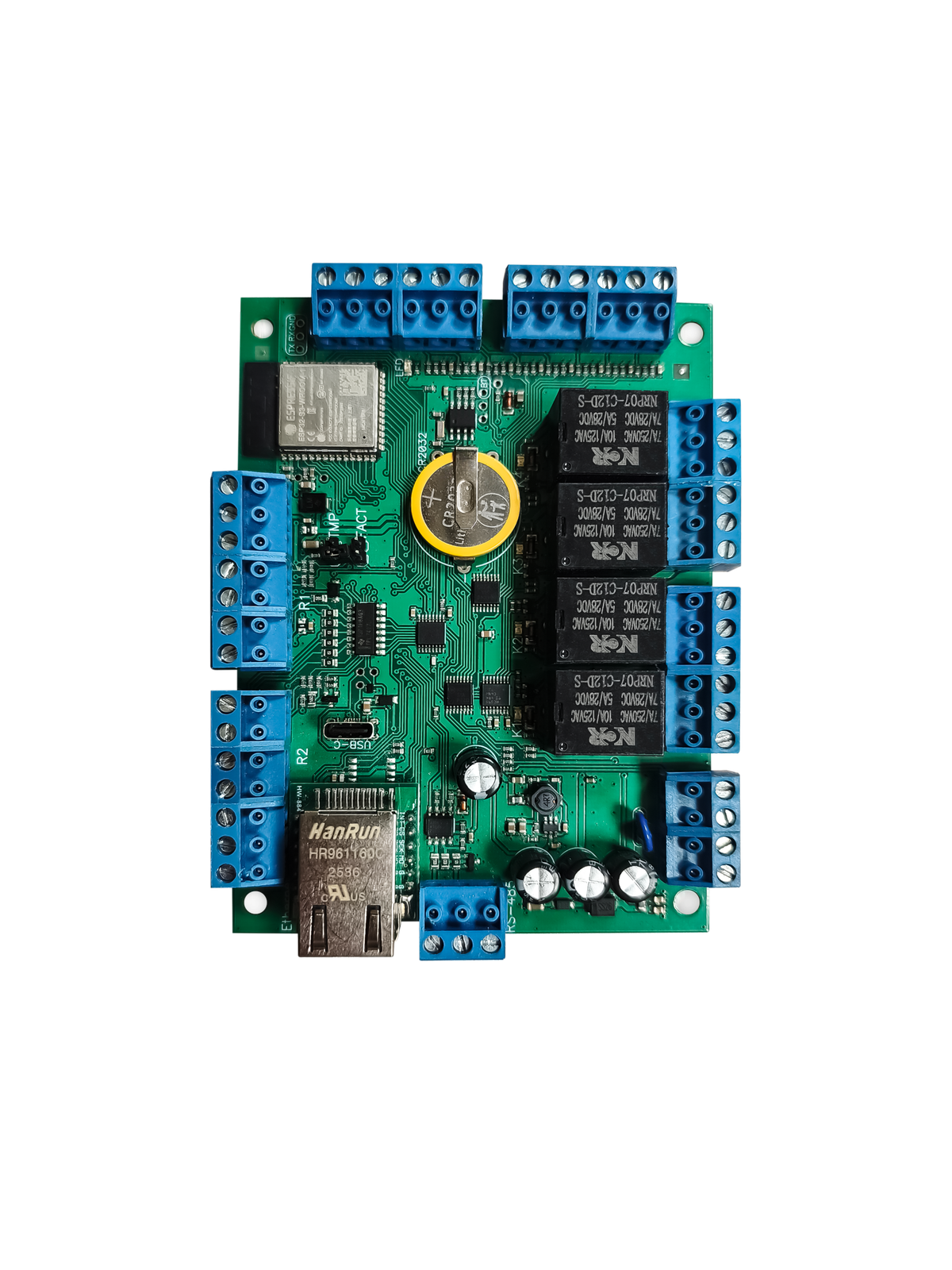

• Dimensions and weight: in enclosure 240 × 276 × 96.5 mm, 2.1 kg; circuit board 122 × 89 × 21 mm, 0.15 kg
• Enclosure: metal, white
• Supplied with: controller, mounting kit and quick-start guide

📎 Documentation

Download the quick-start guide (PDF, multilingual)
