U-PROX RM
NOK 2,000.00
Price excl. VAT.
2-year manufacturer’s warranty.
Sold to business customers only.

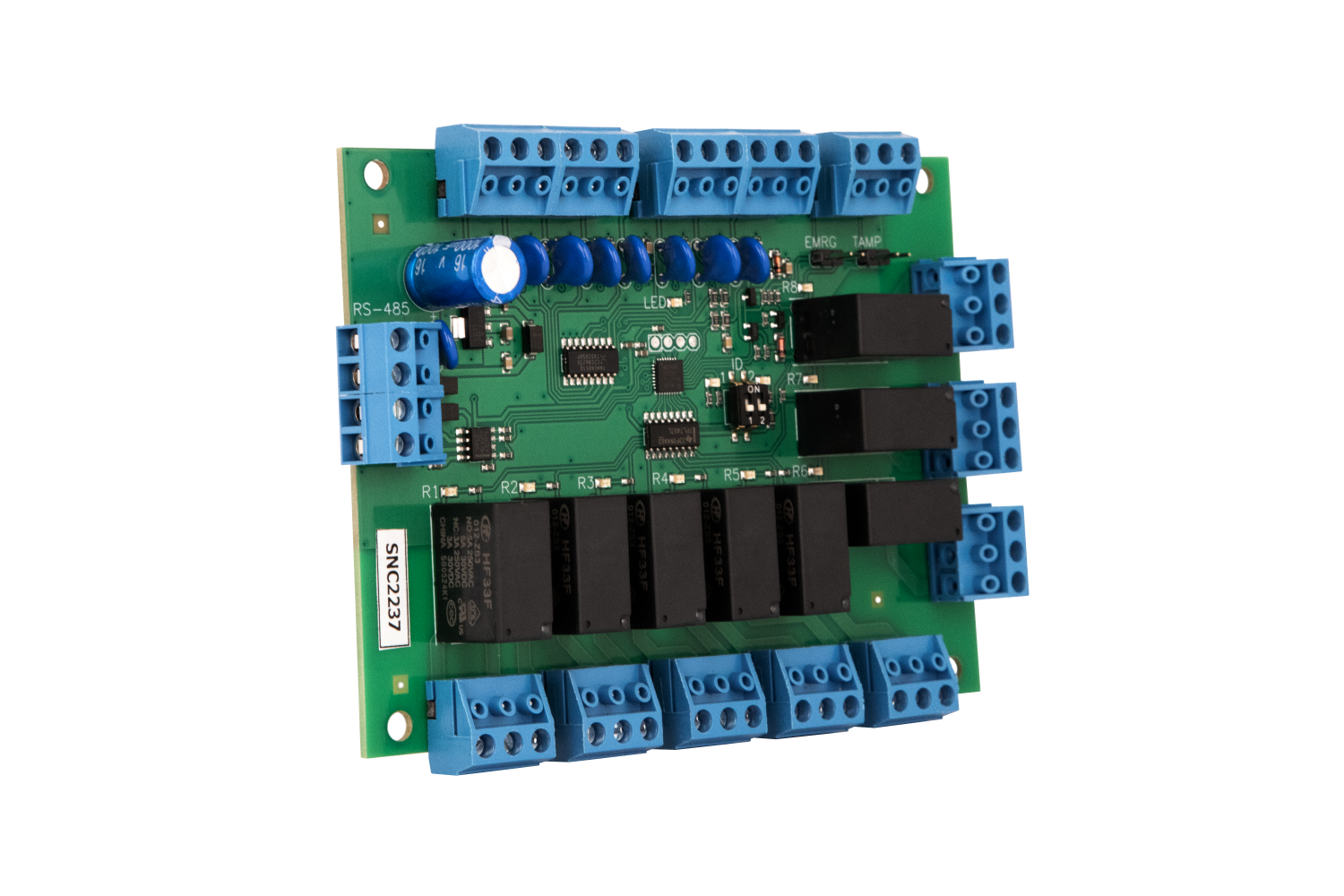

U-PROX IC E Relay Module.
8-channel relay expansion module for U-PROX IC E lift control.
U-PROX IC E Relay Module is an expansion module designed to extend the functionality of the U-PROX IC E lift controller. Each module provides eight relay outputs and eight monitored inputs, and enables safe control of floor selection in lift installations. Several modules can be connected together for larger installations.
Key features
- Expansion module for U-PROX IC E lift control systems
- Controls up to 8 floors per module
- 8 relay outputs (NO/NC/COM), 5 A @ 24 V
- 8 monitored inputs with 2 kΩ EOL resistors
- Secure RS485 communication up to 1000 m
- Supports daisy-chaining of several lift modules for larger systems
Technical specifications
- Power supply: +10.8…15 VDC
- Power consumption: < 400 mA @ 12 V
- Dimensions: 112 × 88 × 20 mm
- Weight: 0.3 kg
- Temperature range: 0°C to +55°C
📎 Documentation
Request a quote
Enquiries by email or phone: info@teren.no · +47 400 72 382
Sold to business customers only.
