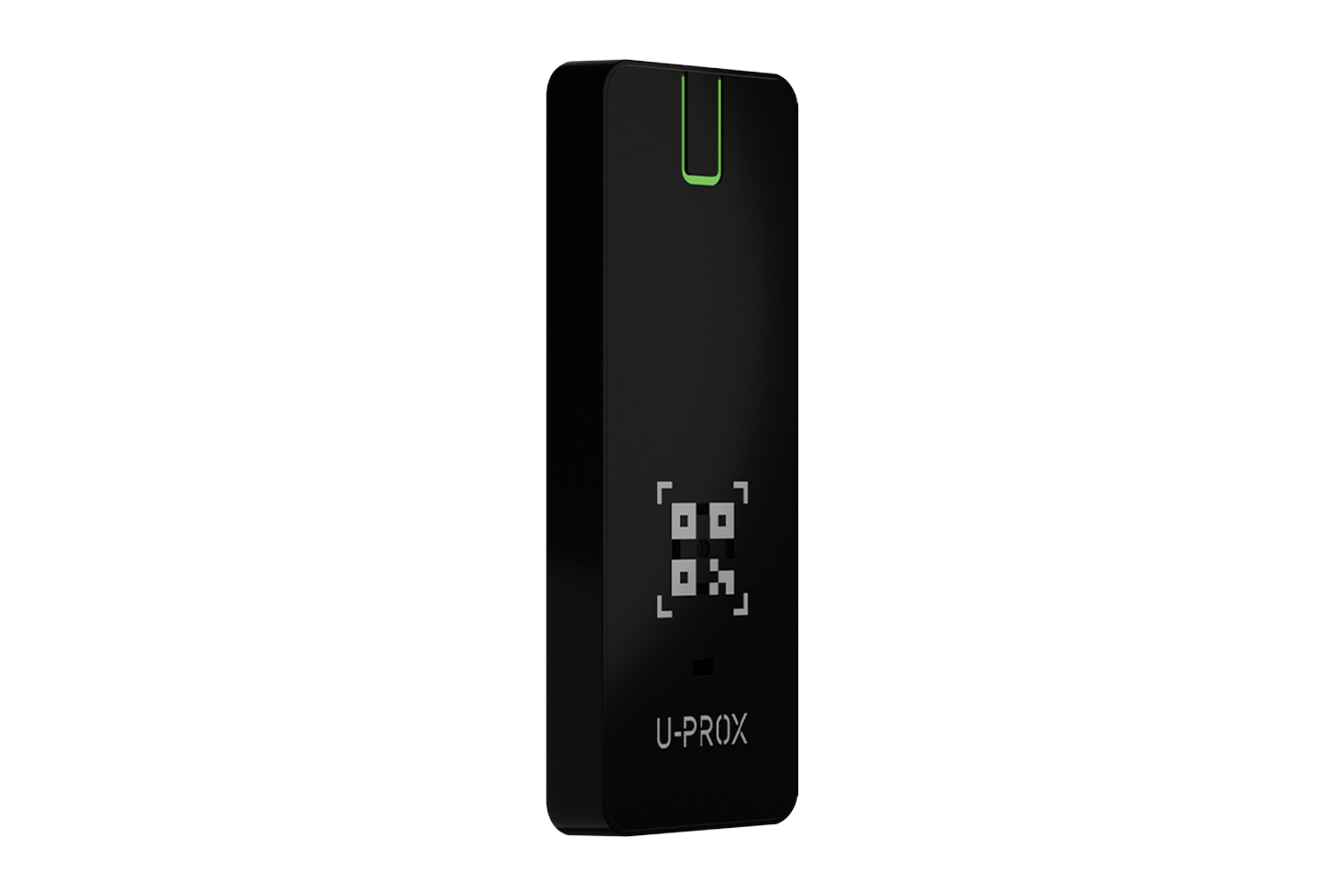

U-PROX SE QR Slim
Price coming soon
2-year manufacturer’s warranty.
Sold to business customers only.
Universal reader for QR codes, mobile ID and contactless cards, with OSDP, Wiegand and IP65.
U-PROX SE QR Slim is a second-generation SmartLine SE reader with a slim housing and a glass front. It reads 2D QR codes, U-PROX Mobile ID (BLE and NFC), contactless MIFARE® cards, payment cards (PayPass and PayWave) and U-PROX Tag / Auto Tag, and connects to access control systems via OSDP v2.2, Wiegand, RS-232 or TouchMemory. The reader has an IP65 rating and can be installed both indoors and outdoors. It does not support 125 kHz RFID cards (ASK/FSK). It is configured with the U-PROX Config mobile app.
Key features
- Slim ABS+PC housing with a glass front (Gorilla Glass), IP65 – for installation both indoors and outdoors
- Reads 2D QR codes from a smartphone screen at 5–15 cm
- QR code illumination, proximity sensor and light sensor
- Reads contactless cards at 13.56 MHz (ISO14443A): MIFARE® Classic, MIFARE® Plus, MIFARE® DESFire (EV1/EV2/EV3) and MIFARE® Ultralight
- Reads payment cards (PayPass and PayWave)
- Reads encrypted MIFARE identifiers, up to five encryption profiles at the same time
- Mobile ID via U-PROX Mobile ID (BLE and NFC, NFC on Android only) as well as U-PROX Tag and Auto Tag
- Three BLE modes: “Door” (up to 60 cm), “Proximity Door” (10–20 cm, activated by the proximity sensor) and “Gate / Barrier” (1–15 m)
- Interfaces: OSDP v2.2 (OSDP Verified), Wiegand (automatic format selection), RS-232 and TouchMemory
- Does not support 125 kHz RFID cards (ASK/FSK)
- Configuration via the U-PROX Config mobile app (BLE)
Technical specifications
- Generation: second generation of U-PROX SmartLine
- MIFARE® 13.56 MHz, ISO14443A (4/7/10 bytes): Classic 1K/4K, Standard, Ultralight, Hi-Memory, Plus S 2K/4K, Plus SE 1K, Plus X 2K/4K, Plus EV1 2K/4K, DESFire, DESFire EV1/EV2/EV3
- NFC: 13.56 MHz, ISO 14443/15693 (U-PROX ID, Android only)
- Payment cards: PayPass, PayWave
- Mobile ID 2.4 GHz: U-PROX ID, U-PROX Tag, U-PROX Auto Tag
- QR codes: 2D QR codes (model 2)
- Read range: NFC/MIFARE up to 5 cm; 2.4 GHz adjustable from 10 cm to 15 m; QR code 5–15 cm, depending on the size of the code (max. 2 × 2 cm for the proximity sensor to work)
- Interfaces: Wiegand Auto, 26, 32, 34, 37, 40, 42, 56, 58, 64 and 80 bit; RS-232; TouchMemory; OSDP v2.2
- Cable: 8-core, coloured (recommended conductor cross-section 0.22 mm²); TouchMemory up to 30 m, Wiegand up to 150 m, OSDP up to 1000 m
- Power supply: +9…15 VDC, consumption <80 mA
- Radio frequency: RFID HF 13.56 MHz (ISO/IEC 14443 Type A); ISM 2.400…2.4835 GHz
- Protection rating: IP65
- Temperature range: –20°C to +60°C
- Dimensions: 47.5 × 123.4 × 13.3 mm
- Weight: 130 g
- Housing: ABS+PC plastic with a Gorilla Glass front, black
- Configuration: U-PROX Config (mobile app, BLE)
- Supplied with: reader, mounting kit and quick-start guide
📎 Documentation
Request a quote
Enquiries by email or phone: info@teren.no · +47 400 72 382
Sold to business customers only.
