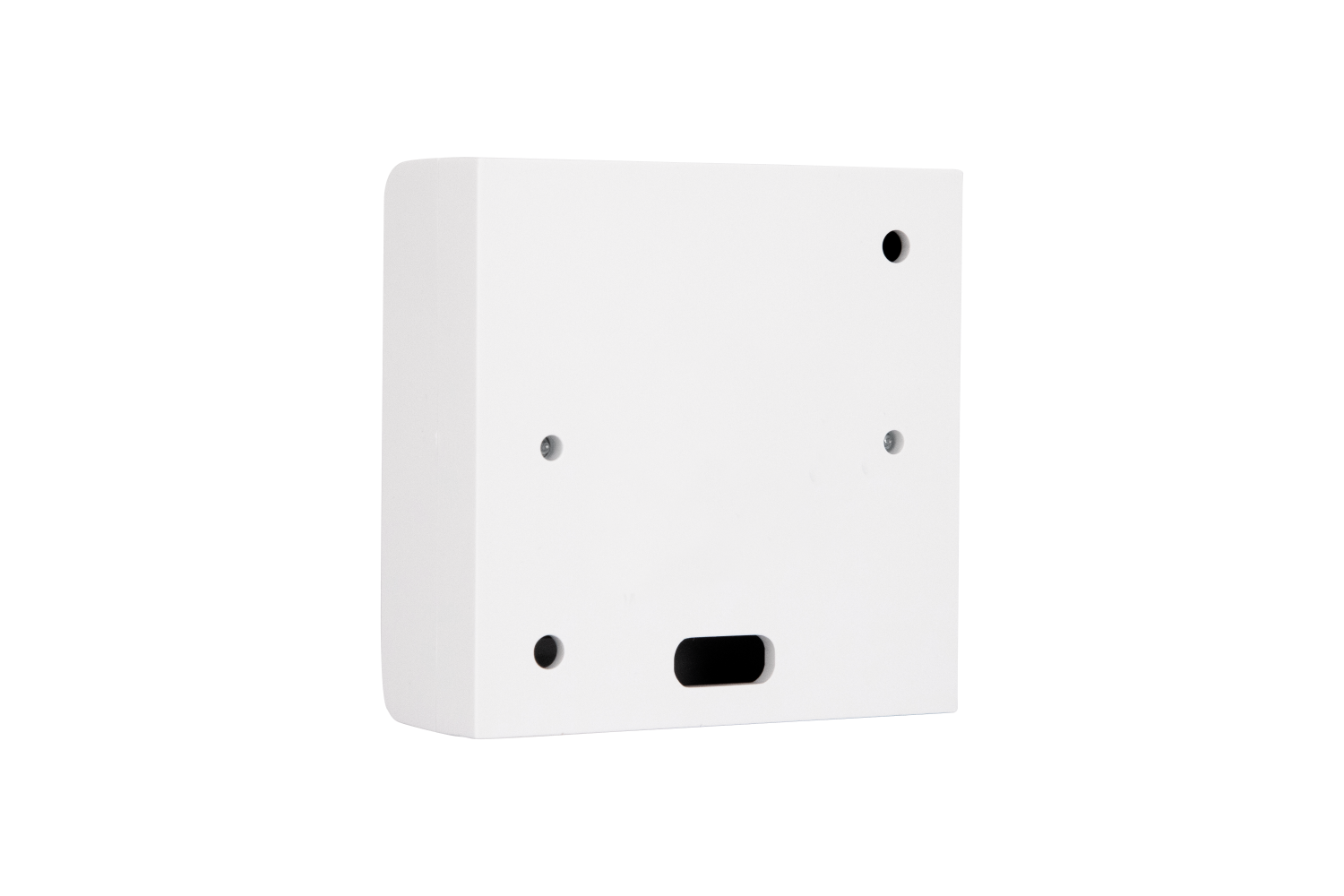

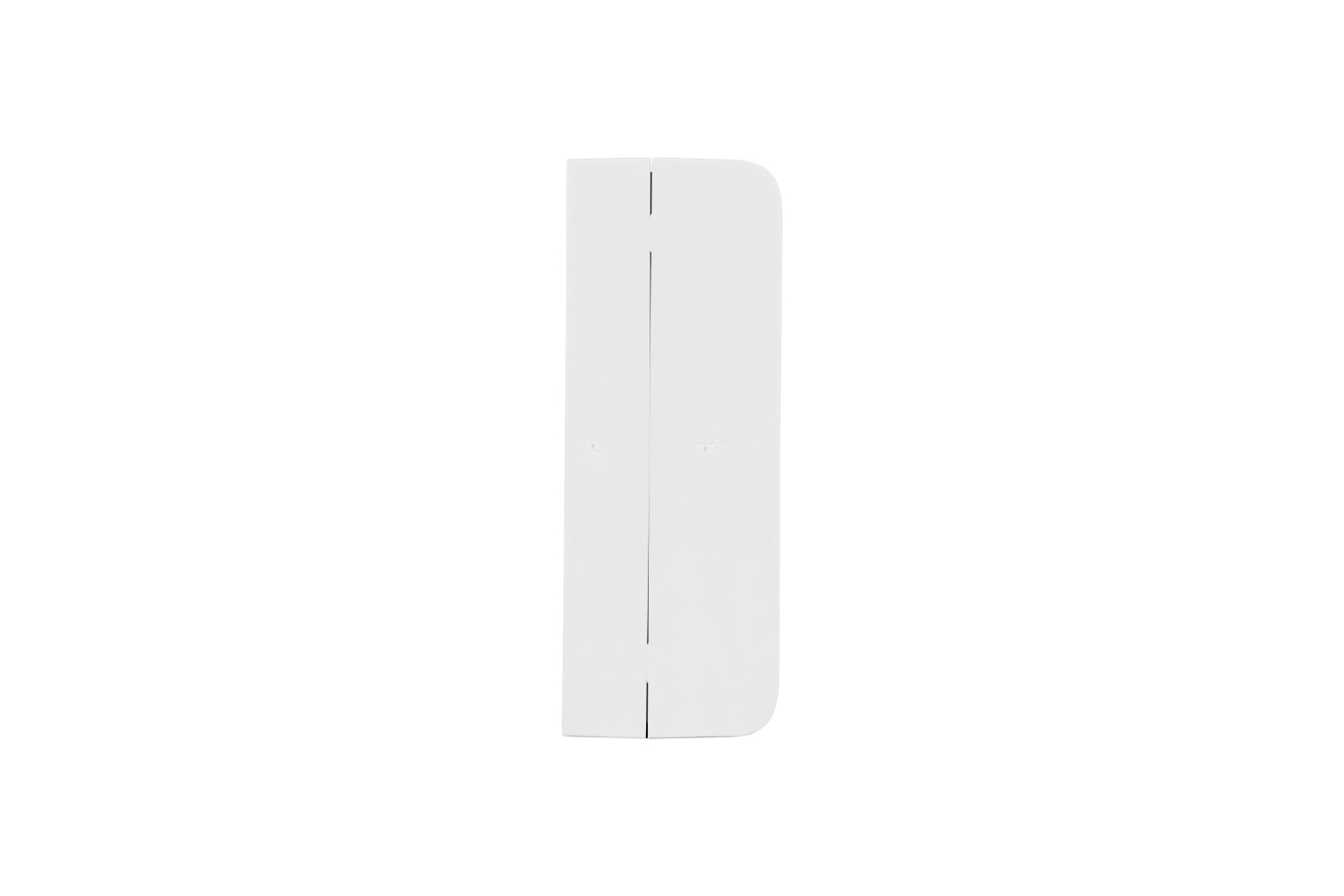

U-PROX WRS485
NOK 860.00
Price excl. VAT.
2-year manufacturer’s warranty.
Sold to business customers only.
Universal RS-485 converter for extending Wiegand signals in the U-PROX IP system.
U-PROX WRS485 is a universal signal converter that makes it possible to extend and stabilise Wiegand signals by converting them to RS-485. This allows standard Wiegand readers to be installed over considerably longer distances than usual, while the communication becomes far more robust in environments with electrical noise. The module is ideal for projects where the distance exceeds Wiegand limitations or where secure and reliable communication is required.
Key features
- Converts Wiegand signals to RS-485
- Enables connection of Wiegand readers over long distances
- (up to 1000 m via RS-485)
- Supports all common Wiegand formats (26–80 bit)
- Supplies both power and communication to the connected reader
- Supports LED and buzzer control for most Wiegand devices
- Improves signal quality and stability in electrically noisy environments
Technical specifications
- Supported reader interface: Wiegand (26–80 bit)
- Controller interface: RS-485, cable length up to 1000 m
- Power supply: +9…15 VDC
- Typical consumption: < 50 mA
- Outputs: LED control, buzzer control
- Temperature range: –40°C to +60°C
- Dimensions: approx. 85 × 45 × 20 mm
📎 Documentation
Request a quote
Enquiries by email or phone: info@teren.no · +47 400 72 382
Sold to business customers only.
